Bus 4CH Quad Video System with 7inch LCD Monitor and 4 Cameras for Sideview, Front View and Rearview
- Model NO.: VC-MDRS8000 Car DVR
- Operating System: Linux
- Certification: FCC, CE, RoHS
- Stream Type: Video Flow
- Interface Display: Four Images
- Shockproof: Super Double Universal Shockproof System
- Wireless: Support GPS, 3G, WiFi for Optional
- Alarm: Multiple Sensor Alarm and Alarm Linkage
- Video: 4 Chnnals Video Input, 1 Channal Video Output
- Trademark: vcomsky
- Origin: Shenzhen, China
- Interface: Air-Plug
- Compression Format: H.264
- Warranty Time: One Year
- Input Channels: 4
- Voltage: 8-36V Wide Range Voltage Input
- G-Sensor: Built in G-Sensor Module
- Storagy: Support SD Card and Hard Disk Storage
- PTZ: Support Local and Remote PTZ Control
- Audio: 2 Channal Audio Input, 1 Channal Audio Output
- Specification: CE, ROHS, FCC
- HS Code: 8521909090
SD Card 4 ch mobile DVR VC-MDRS8000 +Â Two indoor IR car camera +Â One outdoor side view camera +Â One outdoor rear view camera + One 7inch Car LCD Monitor(waterproof)
Suitable for bus, truck, police car...Good night vision, can view the video on the PC and smartphone. H.264, 4channel, shockproof, I/O alarm to traffic accident, playback, support GPS/3G/WIFI for option, with G-sensor function, RS232... Â
Functional Feature:
- 8-36V wide range voltage input, with overvoltage protection function.
- Super double universal shockproof system
- Built in G-sensor module
- Support GPS,3G, WIFI for optional
- Support SD card storage
- Support advertising screen docking, support mobile surveillance(for optional), support communication with peripheral equipment
- Patent UPS power-off protection technology
- Support trajectory playback
- GPS over speed alarm, acceleration alarm, motion detection alarm
- Support alarm trigger capture
- Phone dialing function, IP call function, disk preheating (for optional)
- Mobile monitoring center platform management software (for optional)
- Data redundant storage technology
- Support local and remote PTZ control
- Startup recording by default, support auto timed, alarm & manual recording
- Support to connect speed sensor input, speed audio video synchronous recoding.
- Multiple sensor alarm and alarm linkage
- Support to record multiple status, such as open the door, brake, turn, whistle.
- External dimension: 142(W) x62(H) x123(D) mm   142(W) x36(H) x123(D) mm
Parameter:
Â
| Item | Description | |
| Operation system | Linux | |
| GUI | Setup system parameters with remote controller | |
| Security management | Support user password, supervisor password management; support encryption transmission | |
| Video | Video input/output | 4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω |
| Dual stream | Support | |
| OSD | Time & date, vehicle ID, GPS etc | |
| Compression | H.264. Hisilicon high performance processor is applied. | |
| Preview function | Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function | |
| Video frame rate | PAL: 100 frame/sec, up to 25 frame/sec for single channel NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
|
| Video resolution | CIF, HD1, D1,4D1 adaptive | |
| Video quality | Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest | |
| Video Bit Rate | CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional 4D1: 800Kbps ~ 4Mbps, 8 levels of bit rate optional |
|
| Audio | Audio input/output | 1-channel input; 1-channel output |
| Compression | G.726 | |
| Recording | Storage media | H8000 support Hard Disk+SD card, S8000 support only SD card |
| File format/system | ASF/ FAT32 | |
| Recording mode | Startup recording by default, support auto,timed, alarm & manual recording | |
| Recording search | Search recording video files by time, type, storage device, etc. | |
| Recording playback | Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time | |
| Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time | ||
| Alarm | Alarm input | 5-channel I/OÂ alarm input |
| Alarm recording | Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min | |
| Alarm output | 2-channel alarm output | |
| Storage space | Support the setting of remain storage space alarm function | |
| Functional alarm | Overspeed alarm, gsensor alarm, voltage alarm,snapshot alarm, motion detection alarm | |
| Communication interface | RS232, RJ45 10M/100M self-adaption Ethernet interface | |
| Wireless transmission (optional) | Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional; | |
| GPS (optional) | Support external GPS module | |
| Data remote transmission | Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download; | |
| PTZ control | Support PTZ control function by local remote controller or client software; | |
| Parameter configuration | Support parameter configuration | |
| G-sensor | Built-in | |
| System upgrade | Support hard disk and SD card / Remote upgrade | |
| Power supply & consumption | Power supply management | ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown |
| Input voltage | DC:+8V ~ +36V | |
| Output voltage | +12V@4*0.5A;+5V@0.5A | |
| Power-off protection | Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs | |
| Power consumption | Less than 10W in normal working state; less than 0.5W in standby mode | |
| Working environment | Temperature | Normal: 0 ~ +60 degree Hard disk pre-heating: -25 ~ +60 degree |
| Humidity | 10% to 95% | |
| Dimension | H8000:142(W) x62(H) x123(D) mm, Â S8000:142(W) x36(H) x123(D) mm | |
| Weight | H8000:net weight:1000g ,        S8000:net weight:550g | |
We manufacture finest quality of Butt Weld Pipe Fittings to meet diverse material specification. Our steel butt weld pipe fittings are extremely durable and are available in various shape such as bent,triangular, rectangular etc. Butt weld pipe fittings are ideal multiple connection of pipes and to prevent fluid leakage. Different types of fittings can minimize potential fluid handling system and enhances their over all performance.
Elbow (90o, 45o, 180o)
With a vision to be to be an industry leader in all our manufacture of best quality butt weld pipe fittings, we bring forth our range of Elbow (900, 450, 180o) that are suitable to meet diverse material specification. All of these angular elbows are extremely durable and are available in various shapes like bent, triangular, rectangular etc. due to these high precision, strong made elbows, help in maintaining multiple connection of pipes and to prevent fluid leakage.
900 - radius - 10S - with Light I.P.S- available in Stainless steel, Nickel & Aluminium alloys
450-radius- Standard I.P.S- available in Stainless steel, Nickel & Aluminium alloys
180o-radius- Extra Heavy I.P.S- available in Stainless steel, Nickel & Aluminium alloys

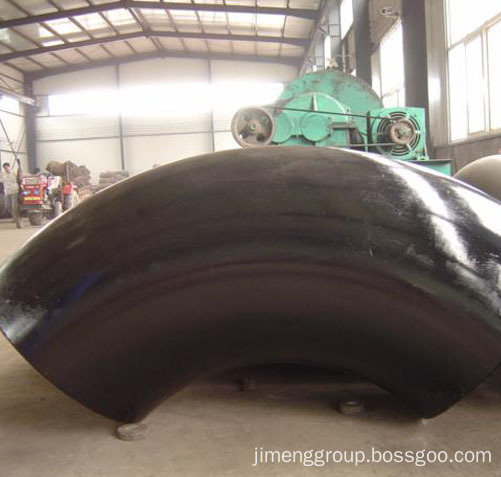

Butt Weld Elbow
