Hexagonal Wire Mesh Gabion Making Machine
Model NO.: JG-4300-B
Trademark: KAIYE
Origin: Anping He Bei China
HS Code: 84633000
Descrition:
Â
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh
sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC
coated wire is available
Gabion Application
Â
Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also
used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,
road, bridge and civil engineering. It is one of the best against flooding material.
Specifications:
Â
1. Mesh sizes: 100x120mm
2. twist: double twist
3. Max. netting width: 4300mm
4. Max. galvanized wire diameter: 1.6-3.2mm
5. Max PVC wire diameter: 4.2mm
6. Spindle Speed:25r/min
7. Power: 11Kw
8. Weight: 15MT
9. Theoretic output: 225m/hr
10. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop
automatically
11. Infrared ray safety protection system (option)
12. Automatic oil system
|
Specification (mm) |
 Max Net  Breadth (mm) |
 Max Thread Diameter (mm) |
Twisting  Model |
Main  Shaft  Ratary Speed |
Motor Power (KW) |
 Theoretical Production Speed |
|||
| Â Twisting (Mesh/min) |
 m/h |   Diamention (LXWXH)mm |
Weight (T) |
||||||
| Â 60X80 | Â 2300 | Â 2.8 | Â double | Â 25 | Â 11 | Â 25 | Â 165 | Â 5200X1400X2400 | Â 13 |
| Â 3300 | Â 2.8 | Â double | Â 25 | Â 15 | Â 25 | Â 165 | Â 6200X1400X2400 | Â 14 | |
| Â 4300 | Â 2.8 | Â double | Â 25 | Â 22 | Â 25 | Â 165 | Â 7200X1400X2400 | Â 15 | |
| Â 80X100 | Â 2300 | Â 3 | Â double | Â 25 | Â 11 | Â 25 | Â 195 | Â 5200X1400X2400 | Â 13 |
| Â 3300 | Â 3 | Â double | Â 25 | Â 15 | Â 25 | Â 195 | Â 6200X1400X2400 | Â 14 | |
| Â 4300 | Â 3 | Â double | Â 25 | Â 22 | Â 25 | Â 195 | Â 7200X1400X2400 | Â 15 | |
| Â 100X120 | Â 2300 | Â 3.2 | Â double | Â 25 | Â 11 | Â 25 | Â 225 | Â 5200X1400X2400 | Â 13 |
| Â 3300 | Â 3.2 | Â double | Â 25 | Â 15 | Â 25 | Â 225 | Â 6200X1400X2400 | Â 14 | |
| Â 4300 | Â 3.2 | Â double | Â 25 | Â 22 | Â 25 | Â 225 | Â 7200X1400X2400 | Â 15 Â |
|
High Purity Silver
As silver metal has the characteristics of "high reflectivity" and "low resistance", so the pure silver sputtering targets and silver alloy sputtering targets are normally used for depositing reflective film, electrode film, wiring film and translucent film (semi-permeable film),which are applied for the following industries: organic EL display , lighting, touch screen, thin film solar cells, LED (light emitting diode), Low-E glass (building materials), optical recording media (BD, DVD, CD, etc.).

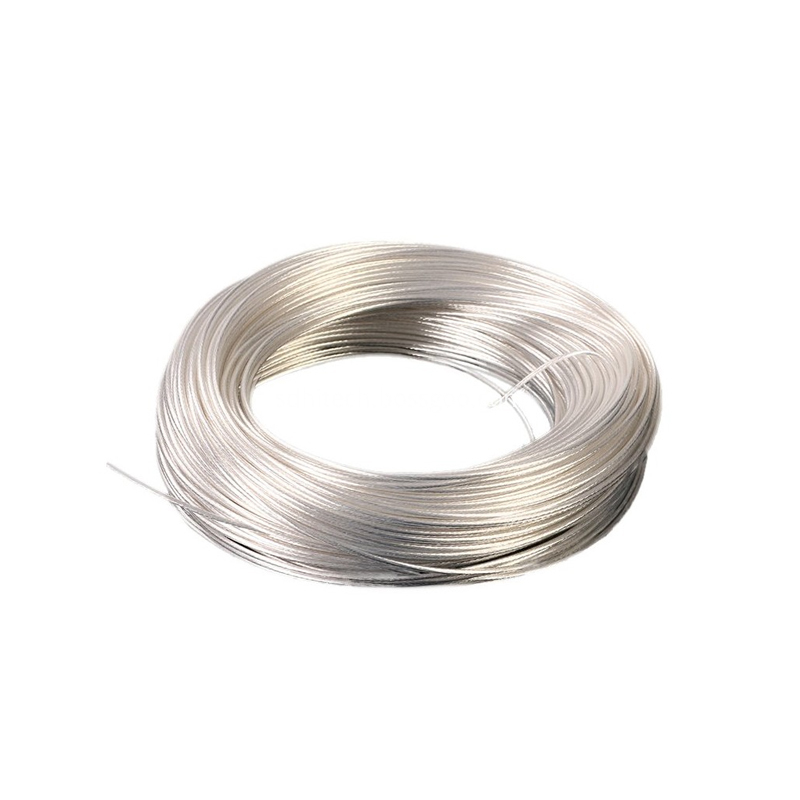

Pure Silver,High Purity Silver,Pure Silver For Bonding Wire,Pure Silver For Semiconductor Target
